Simulation verifies the accuracy of your roof bid

Simulation verifies the accuracy of your roof bid

In most engineering disciplines that involve the creation of new products, simulation of various processes are an essential part of the development cycle. The simulation of any process tests the accuracy and validity of the designers’ intentions, while exploring the most cost effective way to complete a project.

In much the same way, preparing a roofing or cladding quotation based on the simulated application of materials to a 3D roof and wall model establishes exactly what is required to complete the job, thus providing the most precise material list and labour summary you can achieve. All this while minimising waste and ensuring the most efficient installation.

The most graphic use of the simulation of material application is the ability to set the way the material is applied. With the right software tool kit, you will optimise the re-use of offcuts thus reducing waste. In many complex roof situations, the waste can be reduced to virtually zero, just by flipping the offcut into another area of the roof.

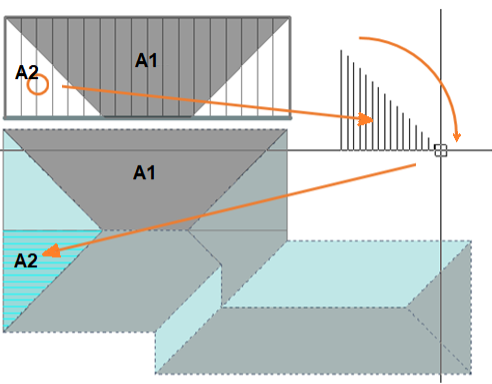

Below is an example of what we call ‘Block-Cut’ where a full length panel is cut and the off-cuts used – one cut, two panels.

Image shows screenshot of block-cut layout map for metal roofing simulation in AppliCad software fro your roof bid

Simulating the application of all the roof materials and using the results to extract accurate quantities and costs builds confidence and trust in the take-off process.













The software prepares a layout ‘map’ to aid installers achieve the results planned for by the estimating team. This reduces waste, speeds up installation and helps keep the site clean and tidy. You can even output a layout map for small form roofing products such as tiles and shingles, ordering the correct quantity of material and making the intentions clear for everyone involved.

When the system has all inventory items correctly associated, the simulation of the application of the material – whether metal panels, tiles or shingles – the system extracts the correct number of clips, brackets, screws, sealant, underlay and even insulation, and calculates the cost to install everything. The only constraint being the amount of detail you setup at the start.  The calculations are almost instant and perfectly accurate.

Below is an example of how to figure metal tiles accurately – ‘course by course’ and accounting for re-use of offcuts from valleys into hips as appropriate.

Image shows screenshot of AppliCad software function for block cutting in metal roof tile simulation fro your roof bid


Why AppliCad?

Only AppliCad uses true 3D modelling and simulates piece-material application panel-by-panel or course-by-course. This is how we can guarantee accuracy of your take-off, if your PDF plan and live site measurements match. The roofing business that uses AppliCad software are confident that they are in control of their margins on a job-by-job basis. They typically win more jobs, and each job is more profitable because they save time for re-orders or material returns. As a result their service, at the most competitive rates, will be better for their clients, too.
